Access Control Reader

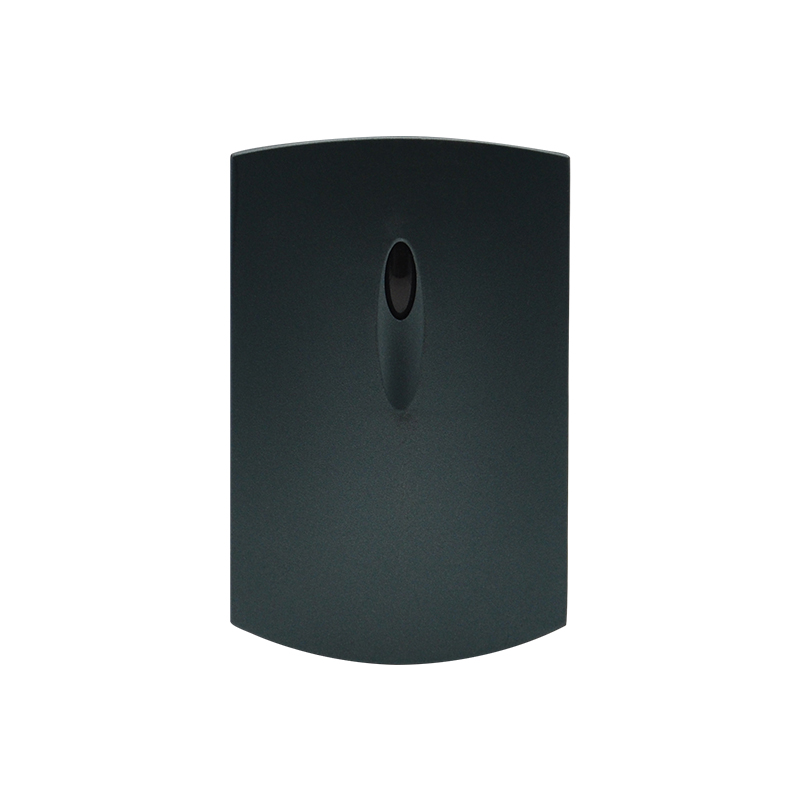

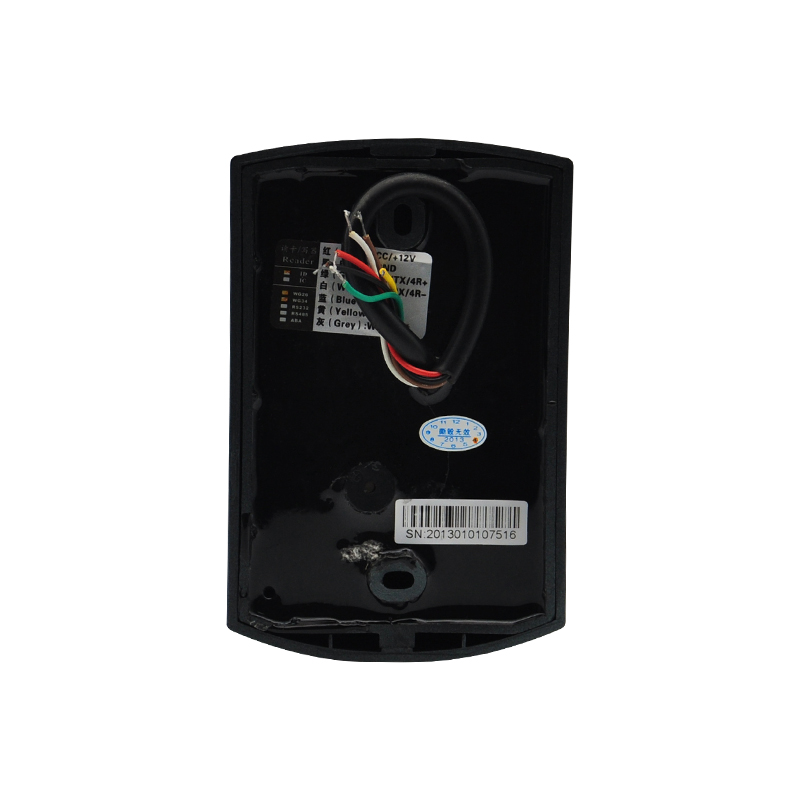

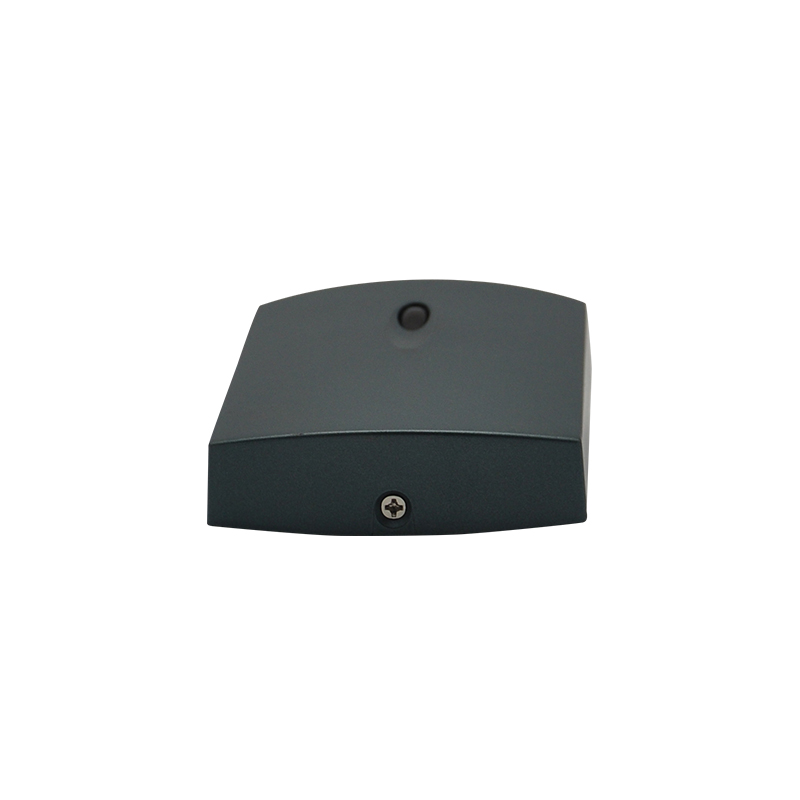

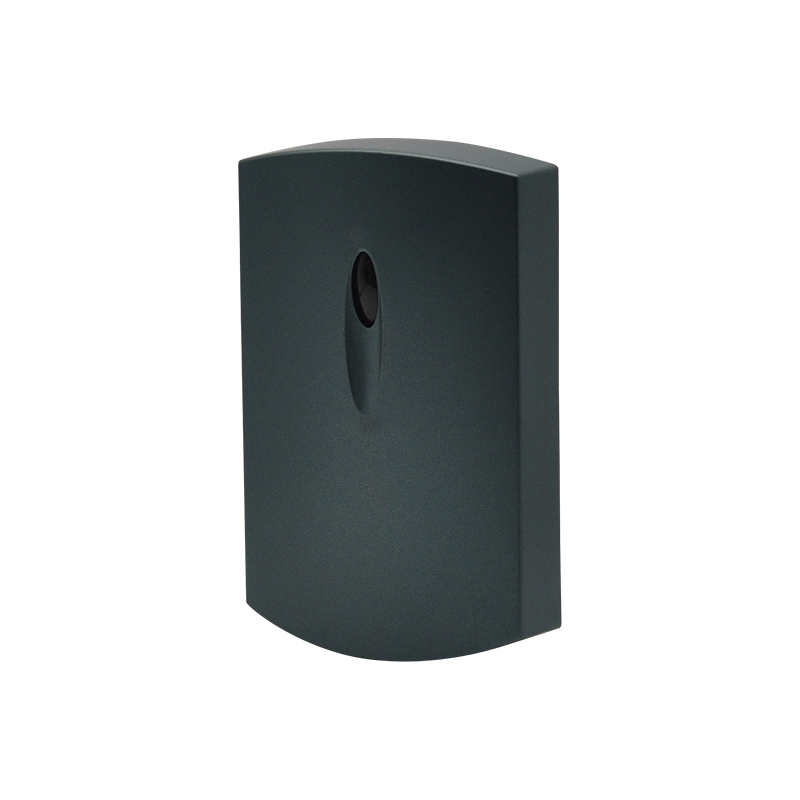

ST-D07 Card Reader for Access Control Panel

Type	ST-D07（LF-ID Reader）	ST-D07（HF-IC Reader）
Frequency	125KHz	13.56MHz
Support Cards	LF: TK4100, M4100, EM4200	HF: MIFARE 1K, F08, MIFARE 4K, Ntag213, Ntag215.
Output Format	10 digit dec (Default output format) (Allow user to customize the output format)
Size	126mm×76mm×23mm
Colour	Dark gray
Interface	Wiegand 26 /34/RS232/485
Power Supply	DC5~12V
Static Current	less than 50mA
Reading Distance	EM ID Card 6~10 cm MF IC Card 4~8 cm
Temperature	*-25℃~85℃
Read speed	less than 0.2sec
Humidity	10%~90%
Weight	About 140g
Material	ABS
Built-in	Antenna,speaker,buzzer,red(blue)green color LED
Indicators	Double Color LED (Red & Green) and Buzzer (“Red” means standby, “Green” means reader success)
