Access Control Reader

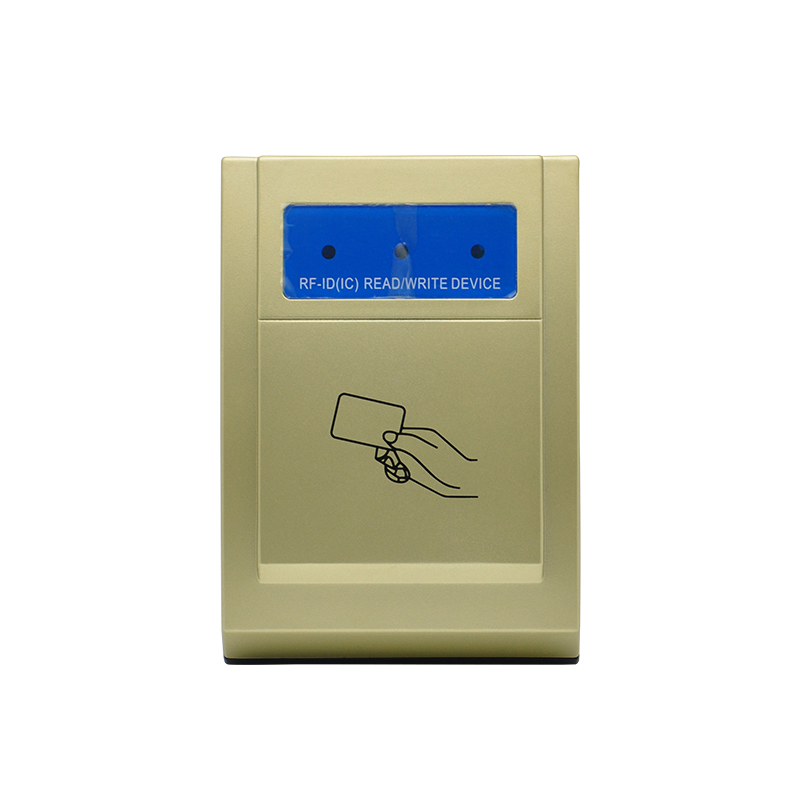

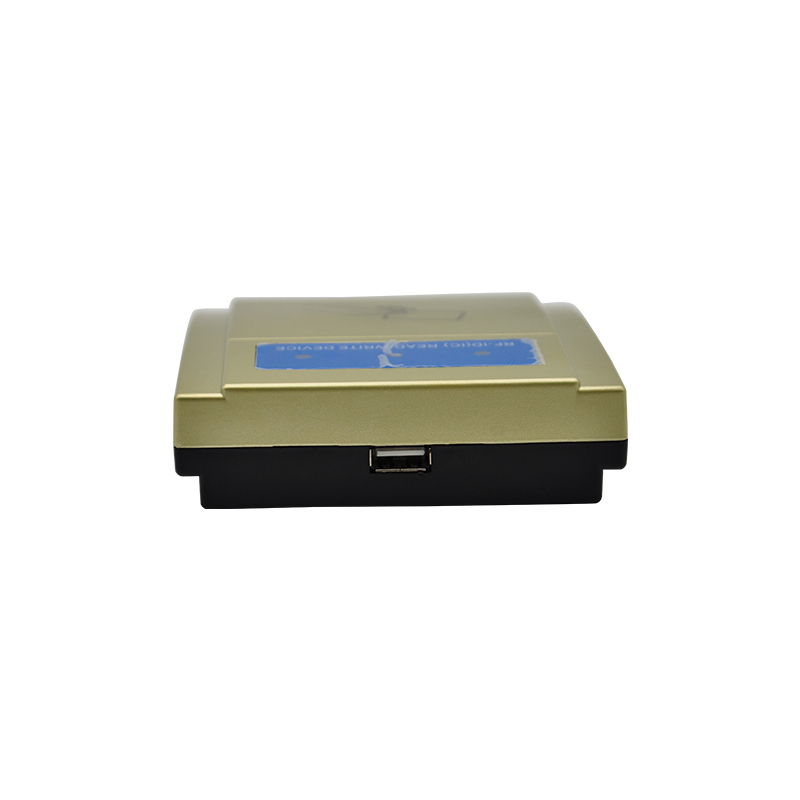

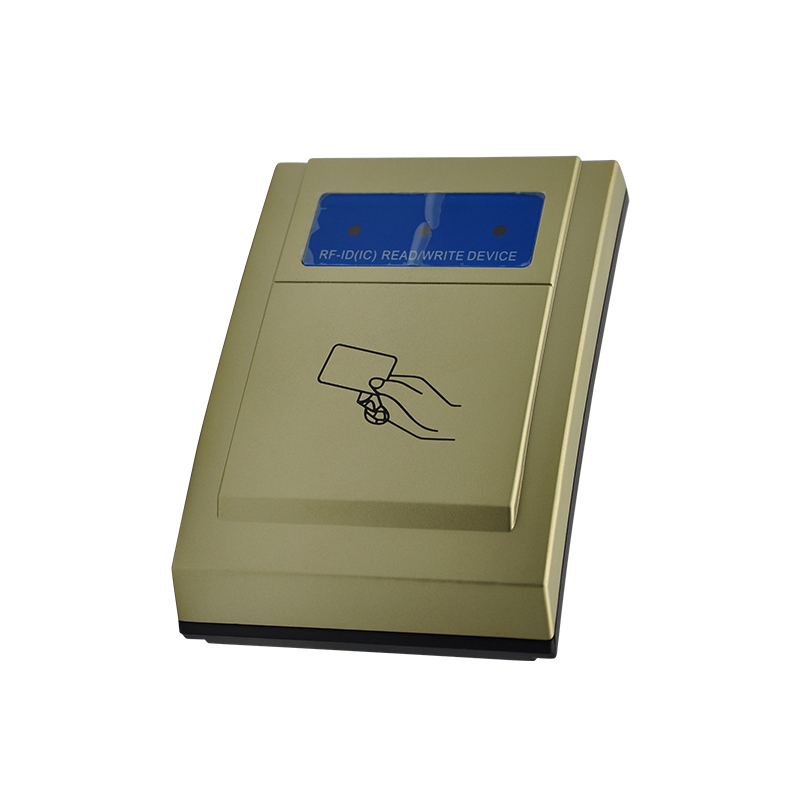

ST-F01 Desktop USB Reader for office

Working Voltage: DC 12V
Frequency:125Khz/13.56Mhz
Interface:USB
Size:120mm×78mm×25mm
This reader packages all the electronics in one rugged weatherized epoxy resin enclosure designed to withstand harsh environments as well as provide a high degree of vandal resistance for reliable performance anywhere attractive and easy-to-install.
INQUIRY

Material	ABS+Epoxy
Size	120x78x25mm
Voltage	DC12V
Static Current	less than 50mA
Color	White
Reading Distance	ID: 3~15cm / IC: 2~8cm
Temperature	*-25℃~85℃
Reader speed	less than 0.2sec
Humidity	10%~90%
Support	125KHz EM ID/13.56MHz MF IC/ Dual frequency at the same time
Card Type	EM-ID card,Middle distance ID card,General ID card,Dual frequency card
Frequency	125KHz/13.56MHz / Dual frequency
Interface	USB
Built-in	Antenna,speaker,buzzer,red(bule)green color LED
Transmission	USB
Supporting System	compatible with Windows98/2000/XP
Speical Provide	Logo printing,long cable,Reader module,Dual frequency(ID&IC)

Used

Connect USB data wire between Device and PC, after 30 seconds system testing period, then punch the card,
and execute the following steps in PC: Start----Program----Accessories----Notepad.

Card Number will be showed on Screen automatically Lines (No need press "Enter" for it)

Application
For access control ,attendance,fees,patrol,card,building on say,parking systems,highways and rfid outdoor application.
