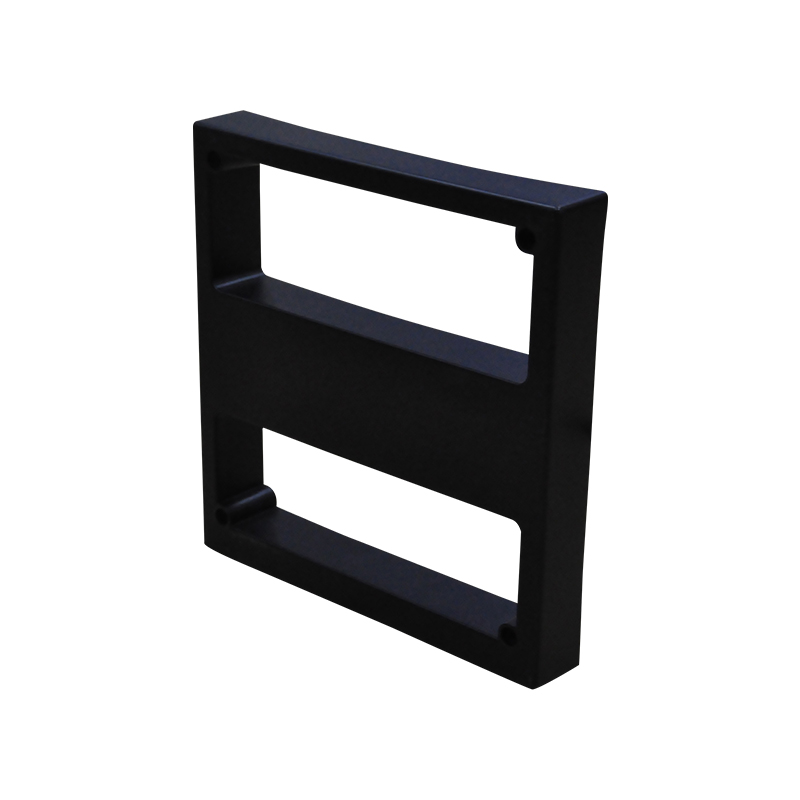

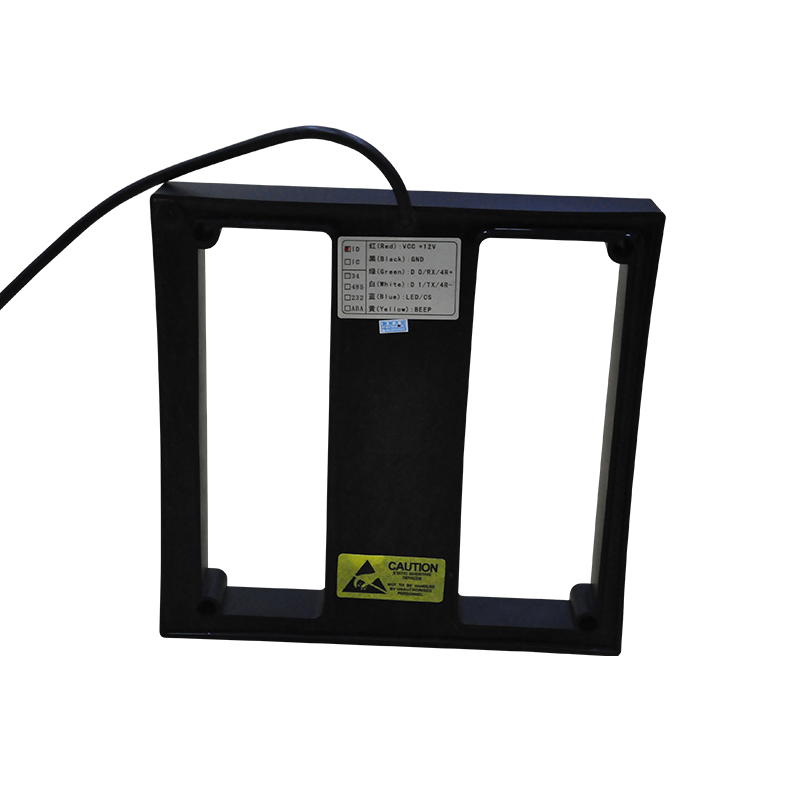

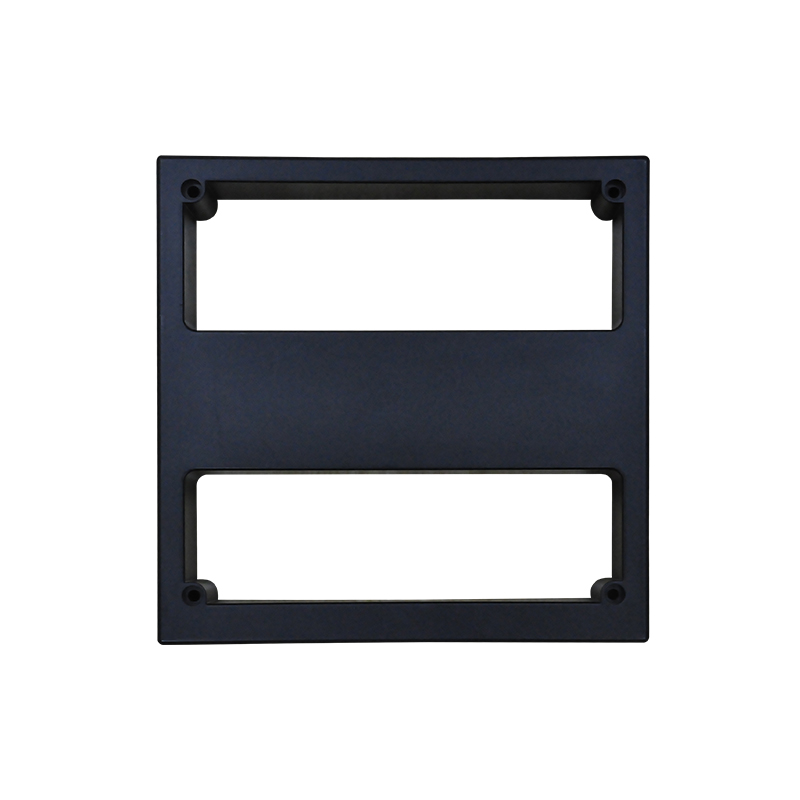

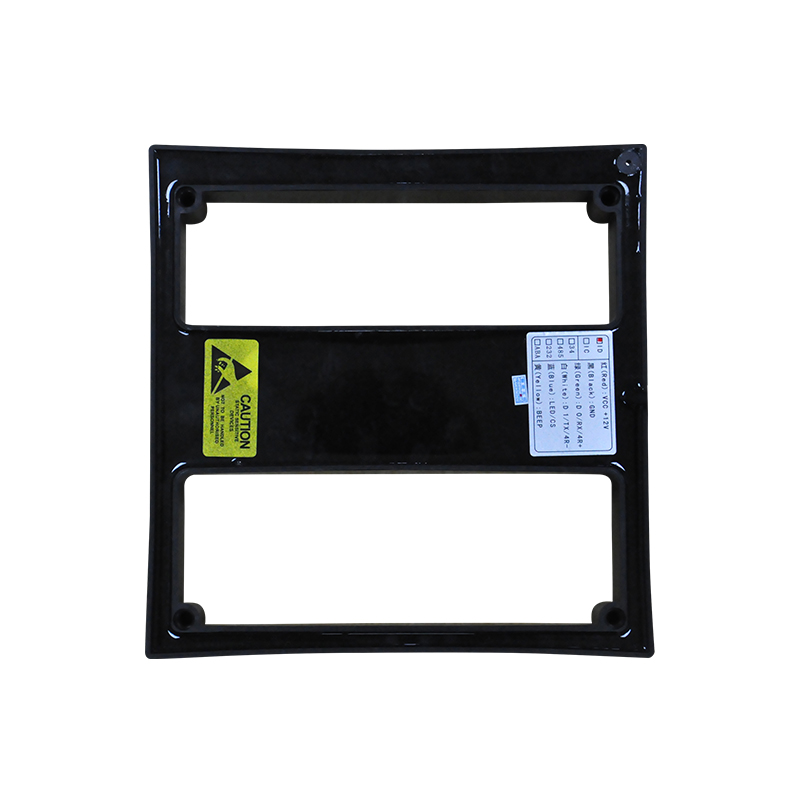

ST-M01 Middle Range Rfid Reader

Material	ABS+Epoxy
Size	230x230x35mm
Voltage	DC12V
Static Current	less than 50mA
Color	Black
Reading Distance	70~100cm for special clamshell cards
Temperature	*-25℃~85℃
Reader speed	less than 0.2sec
Humidity	10%~90%
Waterproof	IP67
Support	125KHz EM ID
Card Type	EM-ID card,Middle distance ID card,General ID card
Frequency	125KHz
Interface	Weigand26/34/RS232/485
Communication Distance	Weigand =100M,Rs232=10M,Rs485=1000M
Built-in	Antenna,speaker,buzzer,red(bule)green color LED
Transmission	Weigand,RS232,RS485
Supporting System	compatible with Windows98/2000/XP
Speical Provide	Logo printing,long cable,Reader module

Installation
Using + type screw driver to loosen the screw between the panel and motherboard.
And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection
Weigand		RS485		RS232
Red	DC12V	Red	DC12V	Red	DC12V
Black	GND	Black	GND	Black	GND
Green	D0	Green	4R+	Green	TX
White	D1	White	4R-	White	RX
Blue	LED
Yellow	BEEP
Grey	WG26/34
Purple	Ring
Purple

Notice

1. Confirm the electric voltage DC12V and differentiate positive anode and cathode of power supply

2. When external Power is used, suggest to use same power GND with controoller panel.

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.
