Access Control Reader

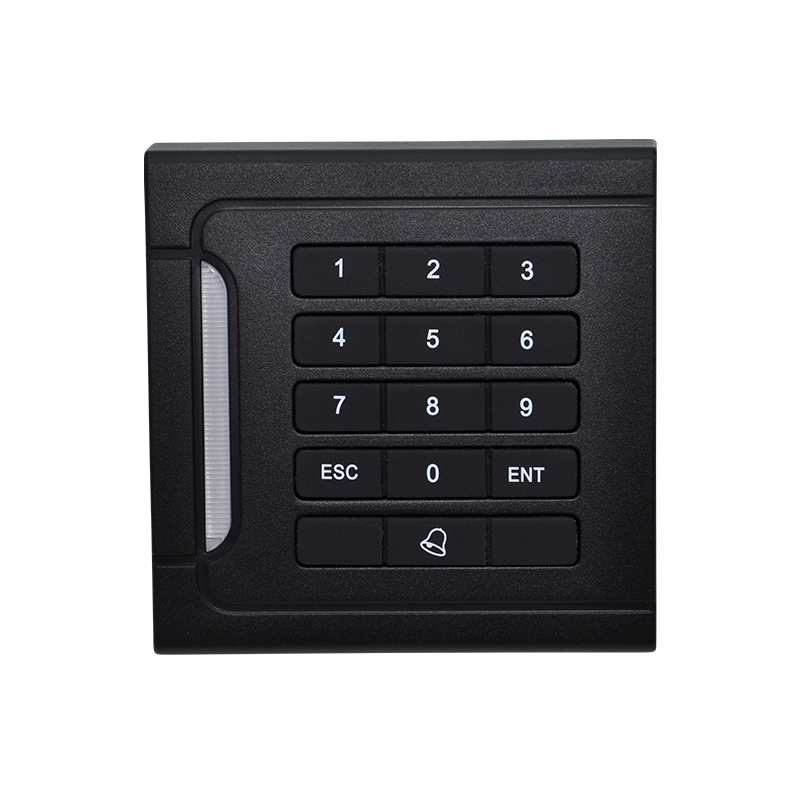

ST-N14 Keyboard Door Access Reader

Working Voltage: DC 12V
Frequency:125Khz/13.56Mhz
Interface:Wiegand 26 /34
Size:102mm×102mm×16mm
Can't work alone, need work with the access controller panel
INQUIRY

Type	ST-N14（LF-ID Reader）	ST-N14（HF-IC Reader）
Frequency	125KHz	13.56MHz

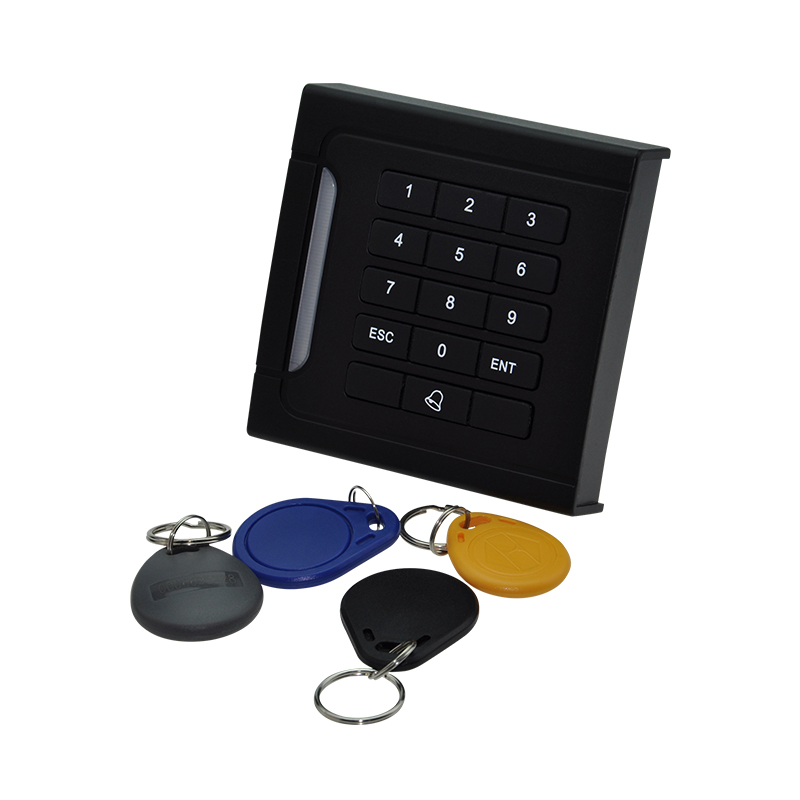

Support Cards	LF: TK4100, M4100, EM4200	HF: MIFARE 1K, F08, MIFARE 4K, Ntag213, Ntag215, I CODE SLIX
Output Format	10 digit dec (Default output format) (Allow user to customize the output format)
Size	102mm×102mm×16mm
Colour	Black
Interface	Wiegand 26 /34
Power Supply	DC5~12V
Static Current	less than 50mA
Reading Distance	EM ID Card 6~10 cm MF IC Card 4~8 cm
Temperature	*-25℃~85℃
Read speed	less than 0.2sec
Humidity	10%~90%
Weight	About 140g
Material	ABS
Built-in	Antenna,speaker,buzzer,red(blue)green color LED
Indicators	Double Color LED (Red & Green) and Buzzer (“Red” means standby, “Green” means reader success)

Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires

Package Include:
1 x RFID card reader(as it is a reader, manual not included)
