Access Control Reader

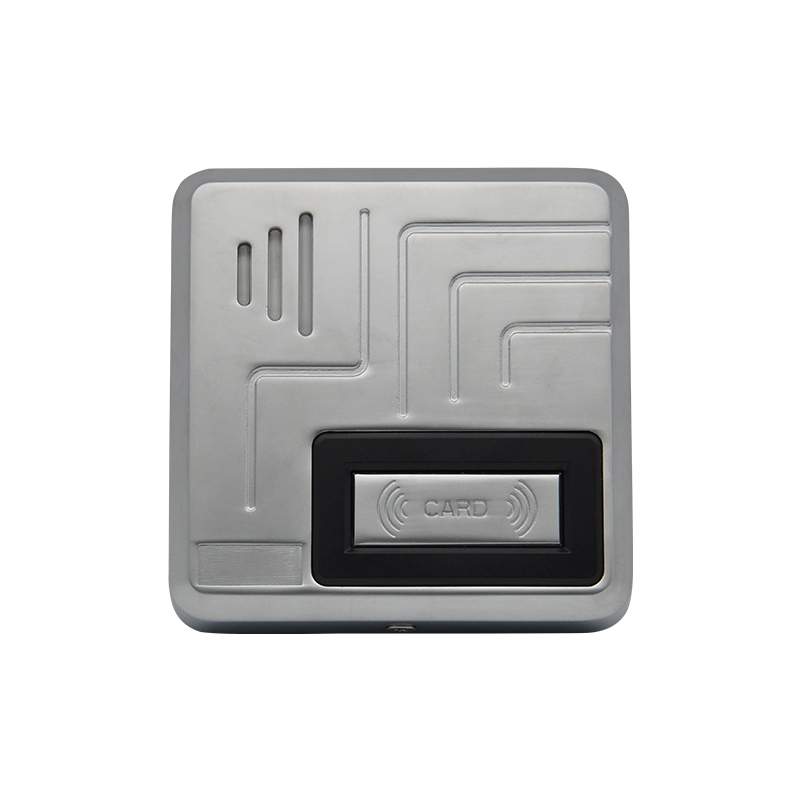

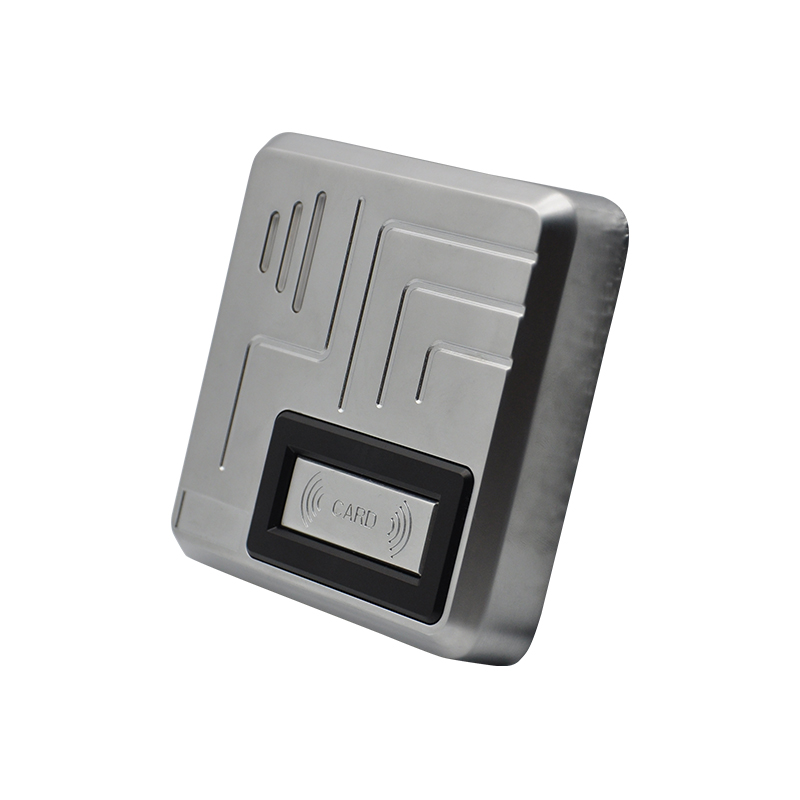

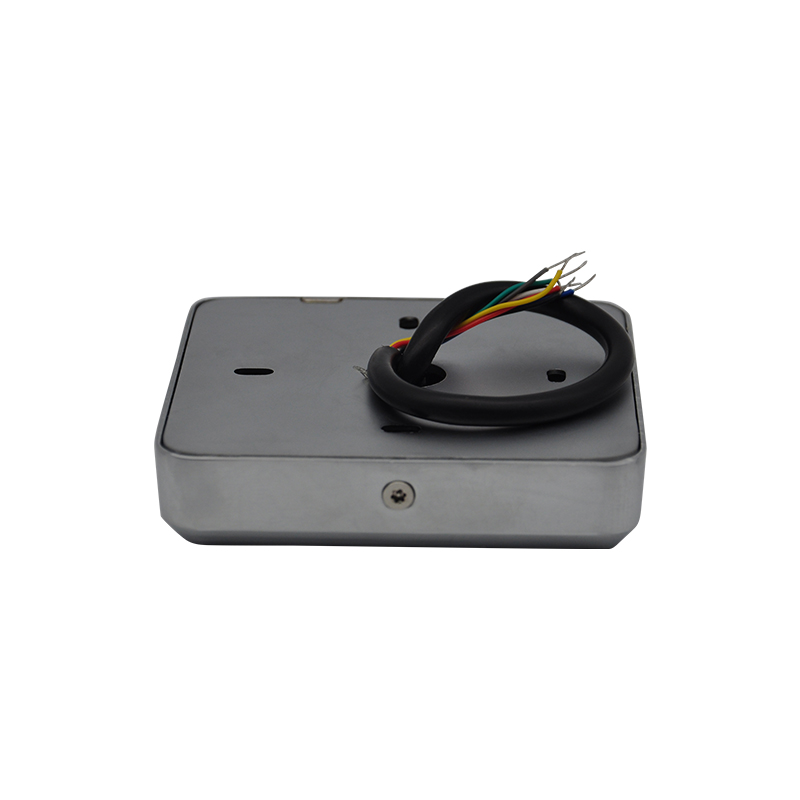

Wall mount metal RFID reader
- Support card:EM ID/MF IC
- Static Current:80mA
- Frequency:125KHz /13.56MHz
- Size:92x92x21mm
- For access control attendance,fees,patrol,parking systems,highways and rfid application.
| Material | Metal case | ||||
| Size | 92x92x21mm | ||||
| Voltage | DC9V~24V | ||||
| Static Current | 80mA | ||||
| Color | Silver gray | ||||
| Reading Distance | EM ID Card 6~10 cm MF IC Card 4~8 cm | ||||
| Temperature | *-20℃~70℃ | ||||
| Reader speed | less than 0.2sec | ||||
| Humidity | 10%~90% | ||||
| Waterproof | IP68 | ||||
| Support | 125KHz EM ID /13.56MHz MF IC | ||||
| Card Type | EM-ID card,General ID card,M 1 card,15693 card,14443A/B card etc. | ||||
| Frequency | 125KHz /13.56MHz | ||||
| Interface | Weigand26/34/RS232/485 | ||||
| Communication Distance | Weigand =100M,Rs232=10M,Rs485=1000M | ||||
| Built-in | Antenna,speaker,buzzer,red(bule)green color LED | ||||
| Transmission | Weigand,RS232,RS485 | ||||
| Speical Provide | Logo printing,long cable,Reader module | ||||
Installation
Using + type screw driver to loosen the screw between the panel and motherboard.
And then embed the motherboard to the side wall with the plastic plug and screws.

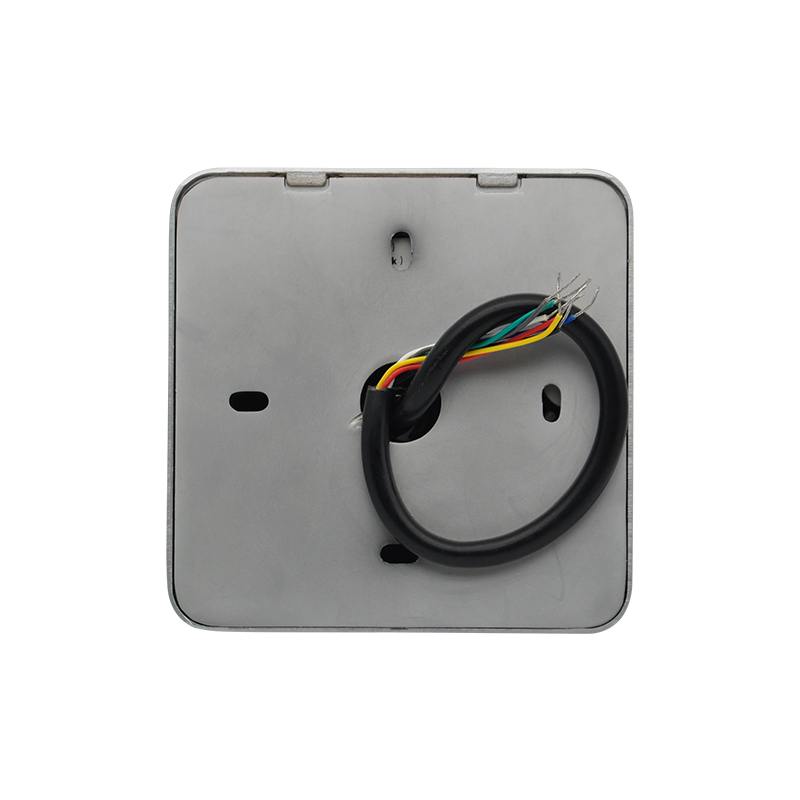

| Wire Connection | |||||
| Weigand | RS485 | RS232 | |||
| Red | DC9V~24V | Red | DC9V~24V | Red | DC9V~24V |
| Black | GND | Black | GND | Black | GND |
| Green | D0 | Green | 4R+ | Green | TX |
| White | D1 | White | 4R- | White | RX |
| Blue | LED | ||||
| Yellow | BEEP | ||||
| Grey | WG26/34 | ||||
| Purple | Ring | ||||
| Purple | |||||
Notice
1. Confirm the electric voltage (DC9-24V) and differentiate positive anode and cathode of power supply
2. When external Power is used, suggest to use same power GND with controoller panel.
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.
