Access Control Reader

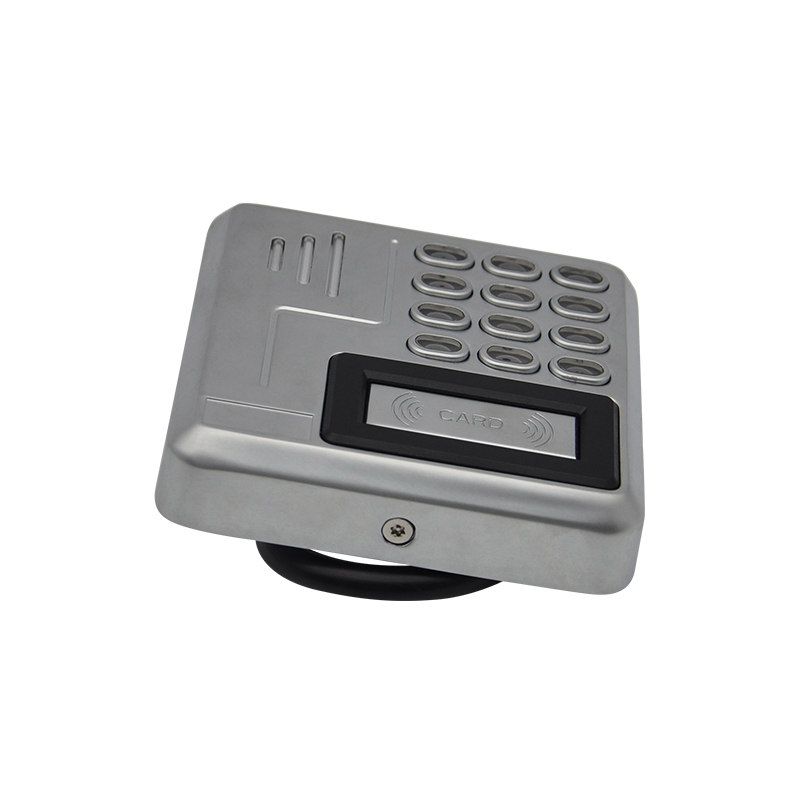

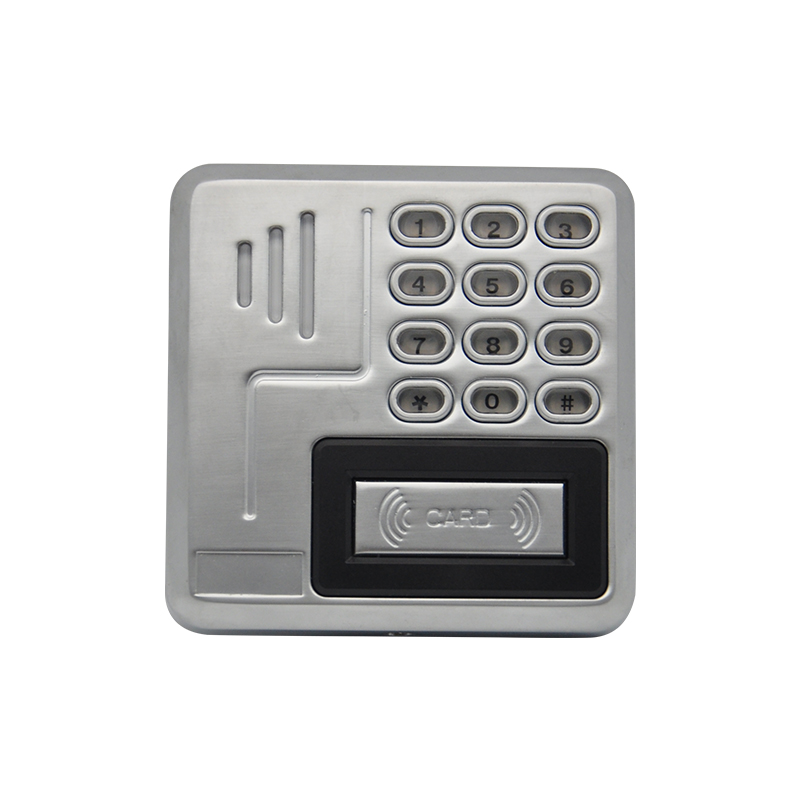

Waterproof Metal Keypad RFID Card Reader

Voltage:DC9V-24V
Frequency:125KHz /13.56MHz
Interface:Wiegand 26 /34
Size:92x92x21mm
For access control attendance,fees,patrol,parking systems,highways and rfid application.
INQUIRY

Material	Metal case
Size	92x92x21mm
Voltage	DC9V~24V
Static Current	80mA
Color	Silver gray
Reading Distance	EM ID Card 6~10 cm MF IC Card 4~8 cm
Temperature	*-20℃~70℃
Reader speed	less than 0.2sec
Humidity	10%~90%
Waterproof	IP68
Support	125KHz EM ID /13.56MHz MF IC
Card Type	EM-ID card,General ID card,M 1 card,15693 card,14443A/B card etc.
Frequency	125KHz /13.56MHz
Interface	Weigand26/34
Communication Distance	Weigand =100M
Built-in	Antenna,speaker,buzzer,red(bule)green color LED
Transmission	Weigand
Speical Provide	Logo printing,long cable,Reader module

Installation

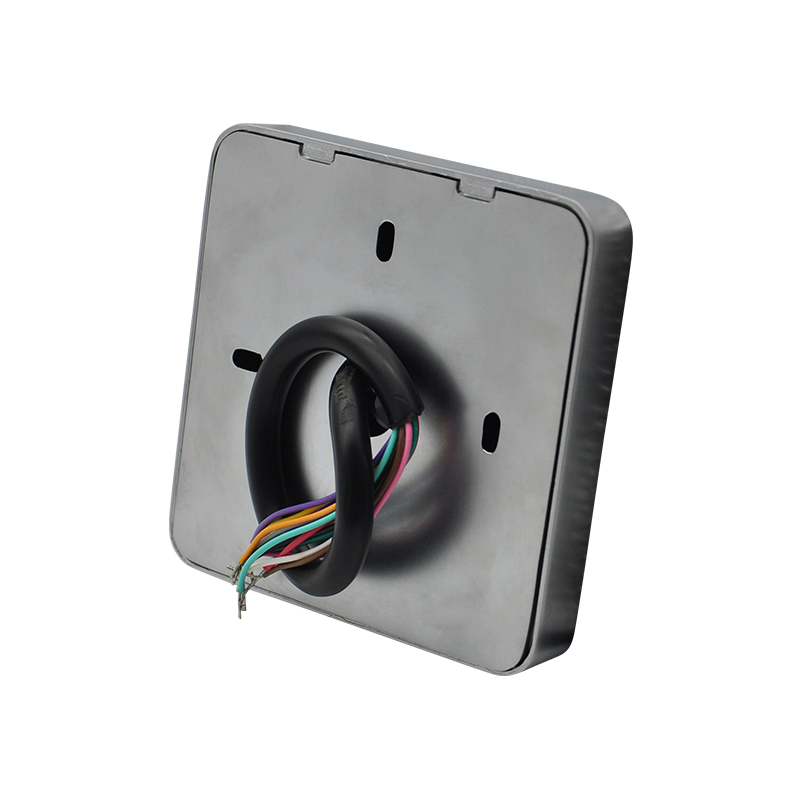

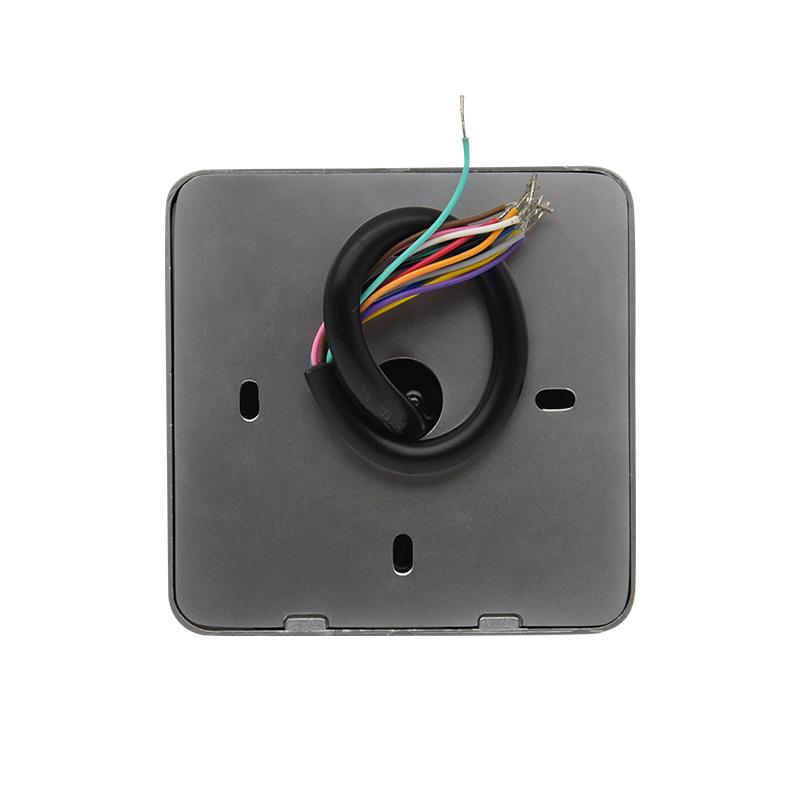

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Notice
1. Confirm the electric voltage (DC9-24V) and differentiate positive anode and cathode of power supply

2. When external Power is used, suggest to use same power GND with controoller panel.

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.
